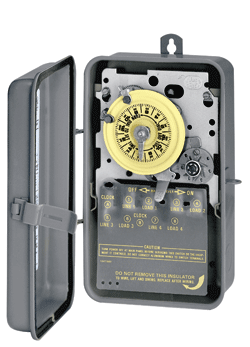

T1471BR

Features:

• Designed for commercial, industrial and residential applications
• Loads up to 40 Amps per pole
• Providing direct 24 hour control of most loads
• 1 to 10 ON/OFF operations each day with minimum ON/OFF times of 1 hour
• Manual override
• All models equipped with one CUTOUT (ON), one OFF tripper and three day-skipper screws
• Day-skipper screws in skipper dial to omit operation on selected days of the week

Models with Carryover (Suffix C)

• Minimum of 16 hours carryover operation for maintaining preset schedules during power failures
• Carryover automatically rewinds when power resumes; only one hour of rewinding time required for every two hours of power outage.
• 4PST models are ideal for 3-phase load control

Specifications:

Enclosure: See table below

Note about Enclosures: 4 pole models will not fit in standard or plastic enclosure; only in NEMA 3R steel enclosure. The T170CR series is only available in the NEMA 3R steel enclosure.

Replacement Motors: See page 158 for available clock motors.

Switch Rating: Same as T100 Series. 4PST models also rated 7.5 HP (28 FLA) 208 VAC; 10 HP (28 FLA) 240 VAC 3-phase.
